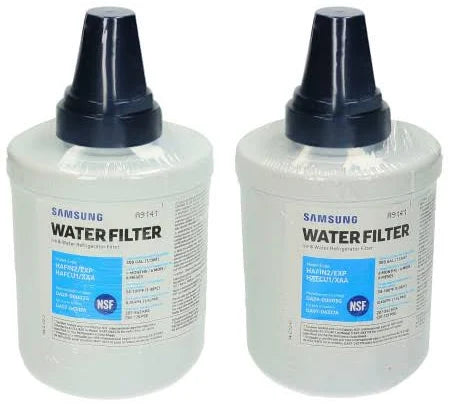

Internal Water Filter Cartridge HAFIN2/Exp

• Type: HAFIN2
• New replacement cartridge for all Samsung side-by-side refrigerators that have internally fitted cartridges
• Max Pressure: 125PSI
• Internal Water Filter for Samsung refrigerator systems: DA97-06317A
• Replacing Cartridge Model No. DA29-00003G and also compatible with old Model No. DA29-00003B
• Removes over 99% of potentially harmful contaminants
• Max Temperature: 100F / 38°C
• Flow Rate: 1.9 lpm
• Operating Pressure: min 138 kPa (20 psi) / max 862 kPa (125 psi)
• Operating Temperature: min 0.6°C / max 38°C
• Capacity: 1136 litres
• Dimensions: approximately 7.5 cm x 15 cm
• Tested and Certified by NSF International against NSF/ANSI Standards 42 & 53
• Samsung recommends replacement every 6 months
• Note: The filter also helps reduce limescale build-up to protect your refrigerator and ice maker.
• Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

• Filter Removal:



  Please remove the top two glass shelves underneath the filter to prevent any damage as the filter may be difficult to remove and require some force.



  Ensure that you twist the filter fully to the unlocked position before you attempt to remove the filter.



  Remove the filter vertically, do not pull the filter towards you. This will prevent any damage to the cam that retains the filter that will prevent the new filter being fitted.
