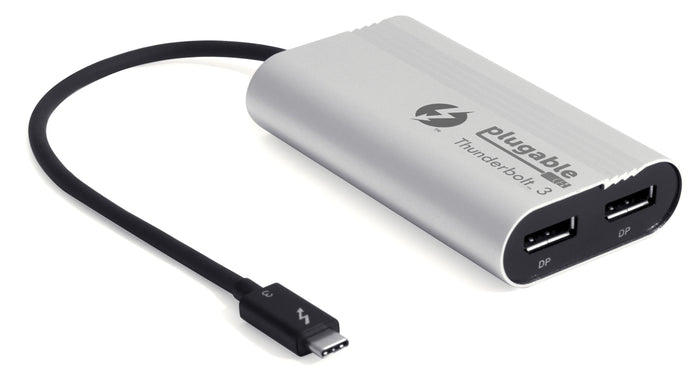

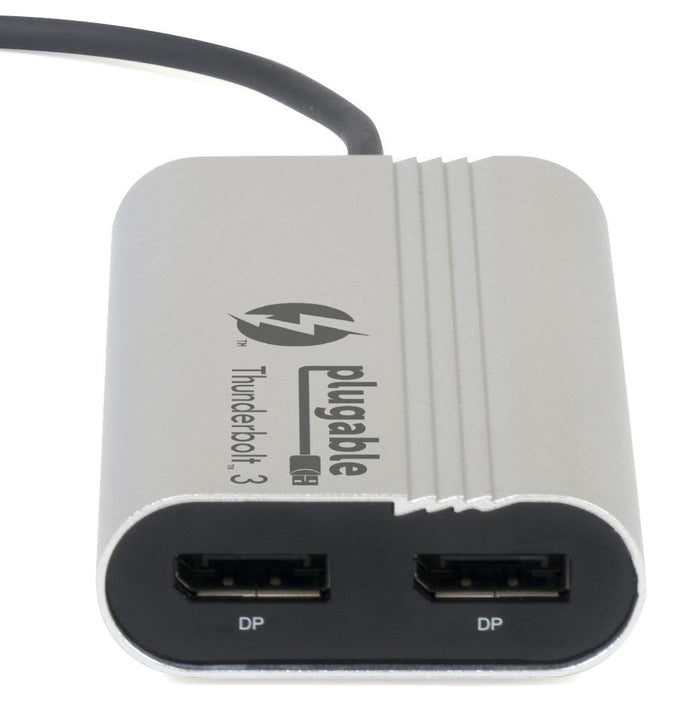

Plugable Thunderbolt™ 3 Dual DisplayPort Adapter for Mac

Supports up to two additional independent 4K displays (or a single 5k display) with 60Hz refresh rates. Thunderbolt 3-attached displays tap directly into your system's graphics processor to enable high-performance output without utilizing additional system resources.

Not all Thunderbolt 3 systems are compatible with dual display graphics adapters.



Compatible Systems

For both graphics adapter outputs to function, system manufacturer must have routed all DisplayPort lines to the Thunderbolt 3 port(s). This is an engineering decision made by your system manufacturer. Currently only Apple, Dell and HP Thunderbolt 3 systems meet this requirement but more compatible Thunderbolt 3 systems are expected in the future.

Tested/validated with:
Dell XPS 13 9350 & XPS 15 9560
Apple MacBook Pro 2016 and iMac 2017

Requires up-to-date system BIOS, Thunderbolt 3 drivers and firmware installed on host system.



Non-compatible Systems

Will not function when attached to a non-Thunderbolt 3 USB-C port

As mentioned above, most current non-Apple, Dell or HP Thunderbolt 3 systems are not fully compatible due to a limited number of DisplayPort lines routed to the Thunderbolt 3 port.

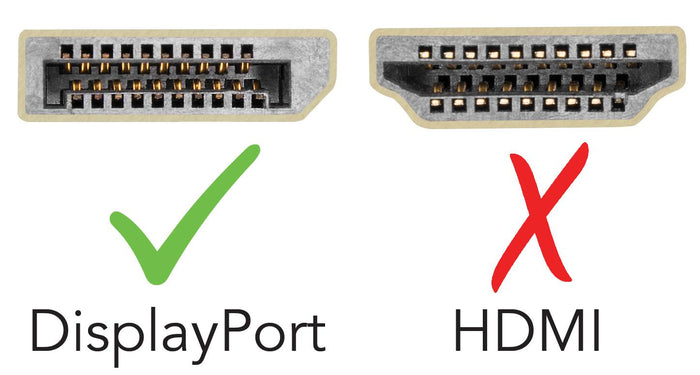

Usage with non-DisplayPort Displays

Conversion to HDMI/DVI /VGA can only be done with active adapters (not inexpensive DP++ passive adapters).

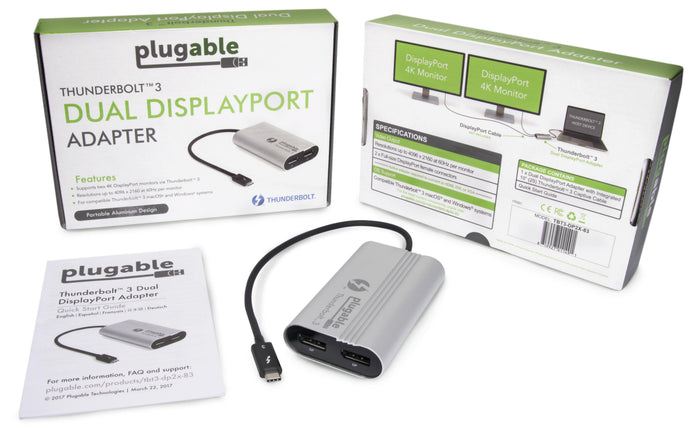

In the Box

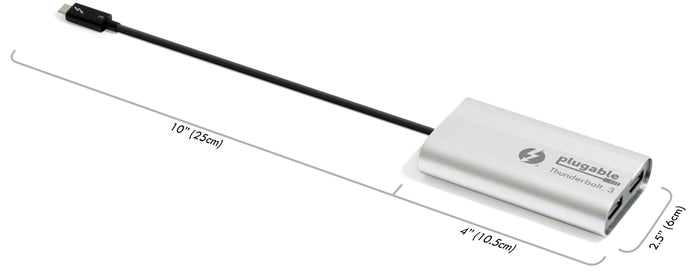

1x Plugable TBT3-DP2X w/ built-in 10 inch (25 cm) Thunderbolt 3 USB-C cable and quick-install guide.
